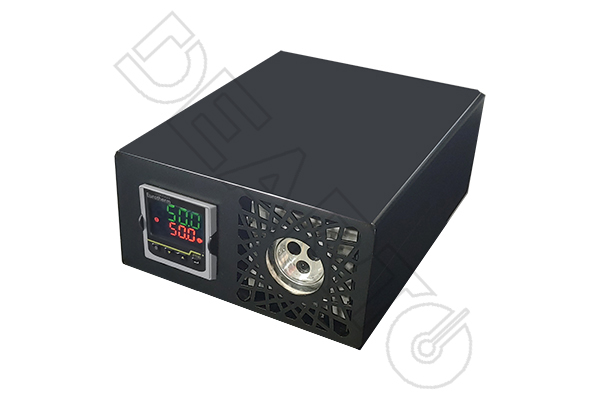

Dry Well Temperature Calibrator ETC-150G
Product Features
Small and light, strong and durable, only weighing about 3kg, convenient on-site measurement calibration.
Fast calibration, 15 minutes can be stable.
The thermowell is replaceable and supports a custom jack for a variety of sensors.
RS-485 communication interface.
Request a Quote
Or Call +86-0538-5089056
Description
Download
Introduction

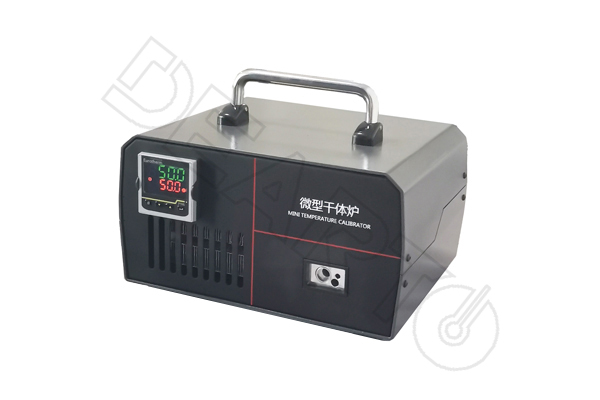

DT-ETC series micro dry well temperature calibrator, is Taian DEARTO micro handheld dry type temperature calibration furnace, small and portable equipment, durable, simple operation, high accuracy. It is especially suitable for the on-site calibration of thermal resistance/thermocouple/temperature switch with various diameters, and the calibration occasions where fast calibration is required and the sensor is not convenient to disassemble.
Technical Parameters
| Micro dry well temperature calibrator | ||
|---|---|---|
| Model | ETC-150G | ETC-400G |
| Temp range | -10℃~150 ℃ | 50℃~400℃ |
| Display resolution | 0.1℃ | |
| Standard thermal block insert aperture diameter | φ4,φ6,φ7 | φ4.5,φ6.5,φ8,φ10 |
| Please indicate the insertion depth and outer diameter of the tested sensor when ordering (support customization) | ||
| Temperature fluctuation | ≤±0.1℃ | |
| Radial uniformity | ≤0.2℃ | |
| Axial uniformity | ≤0.5℃ from bottom up to 40mm | |
| Insertion depth | 110mm | |
| Thermowell size | Φ12.5mmX120mm(L) | Φ30mmX110mm(L) |
| Overall dimensions | 230x180x125mm | 220x160x100mm |
| Power | 230W | 350W |
| Power supply | AC220V,50Hz | |
Interface
