Micro Dry Well calibrators
Product Features
Small and light, strong and durable, only weighing about 3kg, convenient on-site measurement calibration.
Fast calibration, 15 minutes can be stable.
The thermowell is replaceable and supports a custom jack for a variety of sensors.
RS-232 communication interface.
Request a Quote
Or whatsapp +8618853850621
Description
Download
Introduction

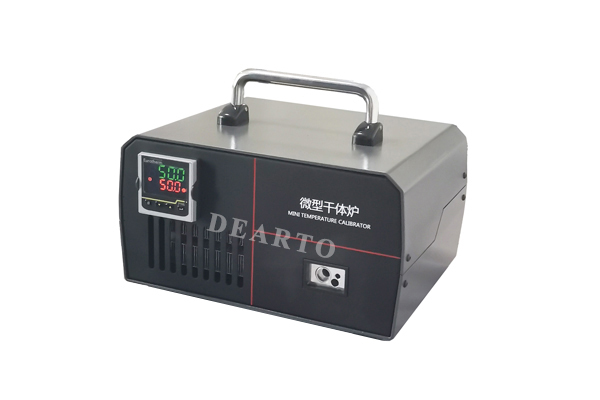

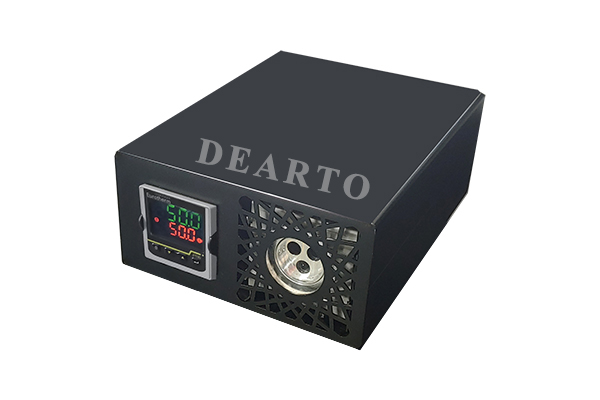

DT-ETC Micro Dry Well calibrators, is Taian DEARTO micro handheld dry type temperature calibration furnace, small and portable equipment, durable, simple operation, high accuracy. It is especially suitable for the on-site calibration of thermal resistance/thermocouple/temperature switch with various diameters, and the calibration occasions where fast calibration is required and the sensor is not convenient to disassemble.
Technical Parameters
| Micro Dry Well calibrators | ||
|---|---|---|
| Model | ETC-150G | ETC-400G |
| Temp range | -10℃ to 150 ℃ | 50℃ to 400℃ |
| Display resolution | 0.1℃ | |
| Standard thermal block insert aperture diameter | φ4、φ6、φ7（mm） | φ4.5、φ6.5、φ8、φ10（mm） |
| （Diameter and quantity can be customized） | ||
| Temperature fluctuation | ≤±0.1℃ | |
| Radial uniformity | ≤0.2℃ | |
| Axial uniformity | ≤0.5℃ from bottom up to 40mm | |
| Insertion depth | 120mm | 110mm |
| Thermowell size | Φ12.5×120mm(L) | Φ30×110mm(L) |
| Overall dimensions | 230×180×125（mm） | 220×160×100（mm） |
| Power | 230W | 350W |
