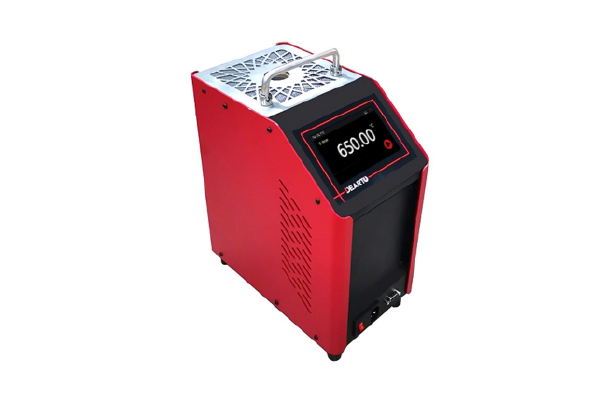

High Temperature Dry Block Calibrator DTG-1000G
Product Features
Its calibration temperature range can be from 300 ℃ to 1200 ℃.
Suitable for laboratory and industrial site temperature calibration / measurement.
The average temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field.
The technology of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis are all at the domestic advanced level.
Widely used in machinery, shipbuilding, chemical industry, food, electricity, medicine and other industries.
Request a Quote
Or Call +86-0538-5089056
Description
Download
Introduction
DTG series high temperature portable intelligent dry block furnace, simple operation, light and portable, accurate temperature control, suitable for laboratory and industrial site temperature calibration / measurement.
Function
1. Accurate temperature control and uniform temperature field.
2. Elegant, portable and lightweight, convenient for on-site verification.
3. Touch screen operation, one-key heating, automatic temperature control is convenient to use.
4. Multi-stage temperature control, rapid temperature rise, zero overshoot, fast and stable.
5. Multi-point calibration interpolation calibration technology, temperature control is more accurate.
6. With RS-232 interface, data can be exported.
7. The temperature curve, fluctuation and deviation are displayed simultaneously, and the reading is intuitive.
Technical Parameters
| High temperature dry block calibrator | ||
|---|---|---|
| Model | DTG-1000G | DTG-1200G |
| Temperature range | 300℃~1000℃ | 300℃~1200℃ |
| Control method | Touch screen | |
| Display resolution | 0.1℃ | |
| Accuracy of sensor | ± 0.4%·t; Support deviation correction | |
| Standard soaking block insertion aperture |
Φ6.5、Φ12 When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support) |
|
| Radial uniformity | ≤±0.2℃ | |
| Axial uniformity | Within 30mm from the bottom of the well ≤1.0℃ | |
| Fluctuation | ≤±0.2℃ | |
| Well depth (mm) | 200 | |
| Dimensions (mm) | 310(L) x165(W) x360(H) | |
| Power | 1800W | |
| Power supply | AC110V/220V, 60Hz/50Hz | |
Operation
Startup interface
Setup interface
Temperature control setting interface

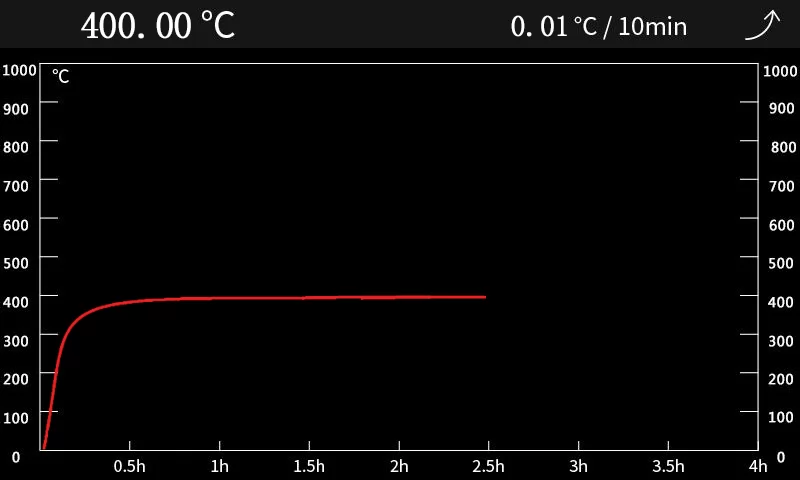

Temperature curve
Auto-tuning
Interface
