Intelligent Precision Constant temperature oil bath
Intelligent Precision Constant temperature oil bath
Intelligent Precision Constant temperature oil bath
Product Features
Large touch screen contro.
The temperature control rate is adjustable
Curve display: computer software can display 32 Wave motion of 10 or 1 min can be displayed
The automatic rehydration function can be set up
Intelligent mixing
Double sensor overheating protection
Excellent stability and uniformity of temperature field
Support USB 、WIFI、WLAN、 serial communication function
Request a Quote
Or whatsapp +8618853850621
Description
Download

Product Description

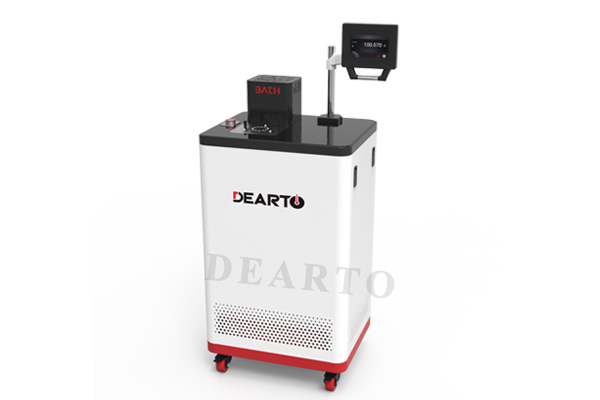

DTS-CT300G Intelligent Precision Constant temperature oil bath is a new type of intelligent thermostatic bath launched by Taian Dearto. It adopts large screen capacitive screen intelligent control and intelligent human-computer interaction interface.
DTS-CT300G Intelligent calibration bath is convenient and practical to operate. Adopts the double cavity side stirring technology, through the intelligent PID adjustment to make the constant temperature tank to achieve the ideal uniform environment, to meet the various low temperature thermocouple, industrial thermal resistance, pressure thermometers, bimetal thermometers, glass liquid thermometers and other temperature sensor verification/calibration.Special index products can be customized according to requirements.


Product characteristics

1. The temperature control rate is adjustable, and the heating rate can be set freely. According to the set heating rate, the temperature rises at a constant speed to meet the verification/calibration of various temperature switches.

2. Has an active smoke exhaust system to create a healthy working environment. Patented structure design, flexibly applicable to a variety of smoke extraction scenarios

3. With intelligent automatic liquid replenishment and liquid level alarm functions, real-time monitoring of multiple liquid level sensors.

4. Super large capacitive screen intelligent control, intelligent human-computer interaction interface, multi-function window display, intuitive, easy to operate;

5. Real-time display of temperature control curve, multi-touch can freely pan and zoom.

6. The volatility is automatically calculated, and the time period can be customized.

7. With stability prompt function, stable state real-time display.

8. The multi-layer composite heat insulation structure design can effectively block the thermal bridge and ensure the stability and fluctuation of the temperature field.

9. Double sensor overheat protection, automatic cut off power supply when over temperature, double safety protection

10. Support temperature 12 test point calibration and correction function

11. Support USB, WIFI, WLAN, serial communication functions

12. Ergonomic design, the temperature control screen adopts three-axis mechanical cantilever installation, and the angle and length can be adjusted at will, which is convenient for operation.

13. Anti-oil design, the tabletop adopts an integrated operating table with built-in overflow circuit to prevent liquid media from contaminating the tabletop;


Technical parameters



Product name Intelligent Precision Constant temperature oil bath
Model DTS-CT300G
Temperature range 70 to 300℃
Working medium Silicone oil
Uniformity of horizontal temperature field ≤0.01℃
Uniformity of vertical temperature field ≤0.01℃
Temperature fluctuation :℃/10 min ±0.007℃
Work area dimensions φ150×480
Volume :(L) 23
Maximum power :(KW) 3
Dimensions :(mm) 660*540*1120
Quality :(Kg) 94

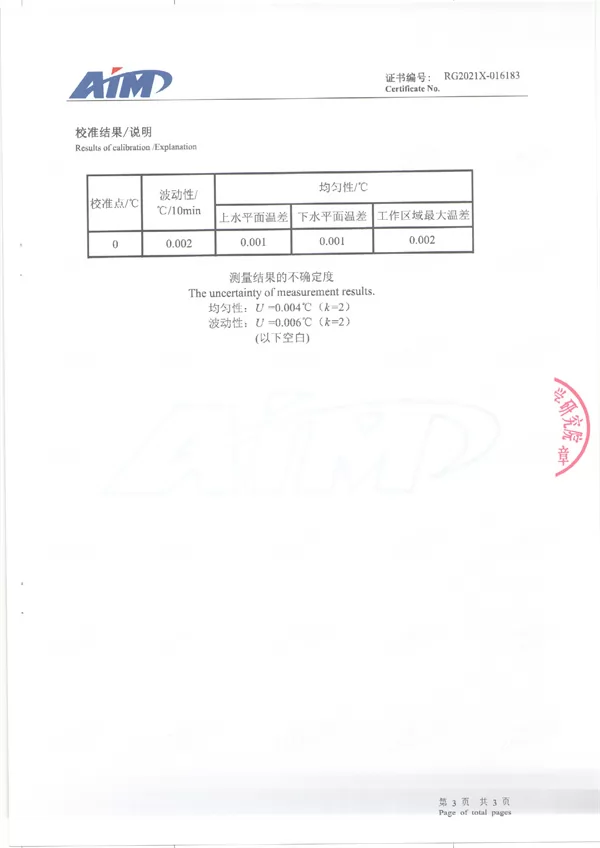

Certificates
