Low Temperature Dry Block Calibrator Furnace DTG Series

Home Products Temperature Calibrator Dry Block Calibrator

Low Temperature Dry Block Calibrator Furnace

Product Features

Suitable for laboratory and industrial site temperature calibration/measurement.

The temperature calibration range of the DTG dry block calibrator can be from -35°C to 150°C.

The technology of temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load performance and hysteresis are all at the domestic advanced level.

Widely used in machinery, shipbuilding, chemical industry, food, electricity, medicine and other industries.

Manuals + Resources

Model Selection

DTG-140G
DTG-150G

DTG-450G
DTG-660G

DTG-1000G
DTG-1200G

ETC-150G ETC-400G

DTL-600G DTL-300G DTL-1000G

DTBH-01G DTBH-03G

Request a Quote

Or whatsapp +8618853850621

Description

Download

Introduction

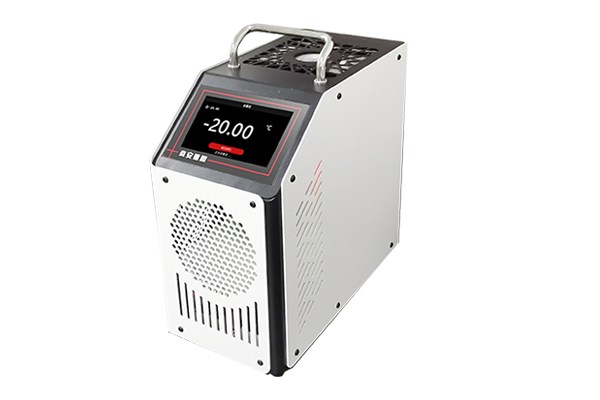

DTG low temperature dry block calibrator furnace, simple operation, light and portable, accurate temperature control. The average temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field.

Function

1. Accurate temperature control and uniform temperature field.

2. Elegant, portable and lightweight, convenient for on-site verification.

3. Touch screen operation, one-key heating, automatic temperature control are convenient to use.

4. Multi-stage temperature control, rapid temperature rise, zero overshoot, fast and stable.

5. Multi-point calibration interpolation calibration technology and temperature control is more accurate.

6. With the RS-232 interface, data can be exported.

7. The temperature curve, fluctuation and deviation are displayed simultaneously, and the reading is intuitive.

Technical Parameters

Model	DTG-140G	DTG-150G
Temperature range	-20℃~140 ℃	-35℃~150℃
Heat source	Semiconductor cooling and heating	Semiconductor cooling and heating
Control method	Touch screen	Touch screen
Display resolution	0.01℃	0.01℃
Standard soaking block insertion aperture	Φ4.5、Φ6.5、Φ8、Φ10 When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support)
Radial temperature field	≤0.2℃
Axial temperature field	Within 40mm from the bottom of the well ≤0.8 ℃
Temperature fluctuation	±0.15℃
Well depth (mm)	170mm
Dimensions (mm)	280165280	330170320
Power	400W	400W
Power supply	220V/50Hz,110V/60Hz
