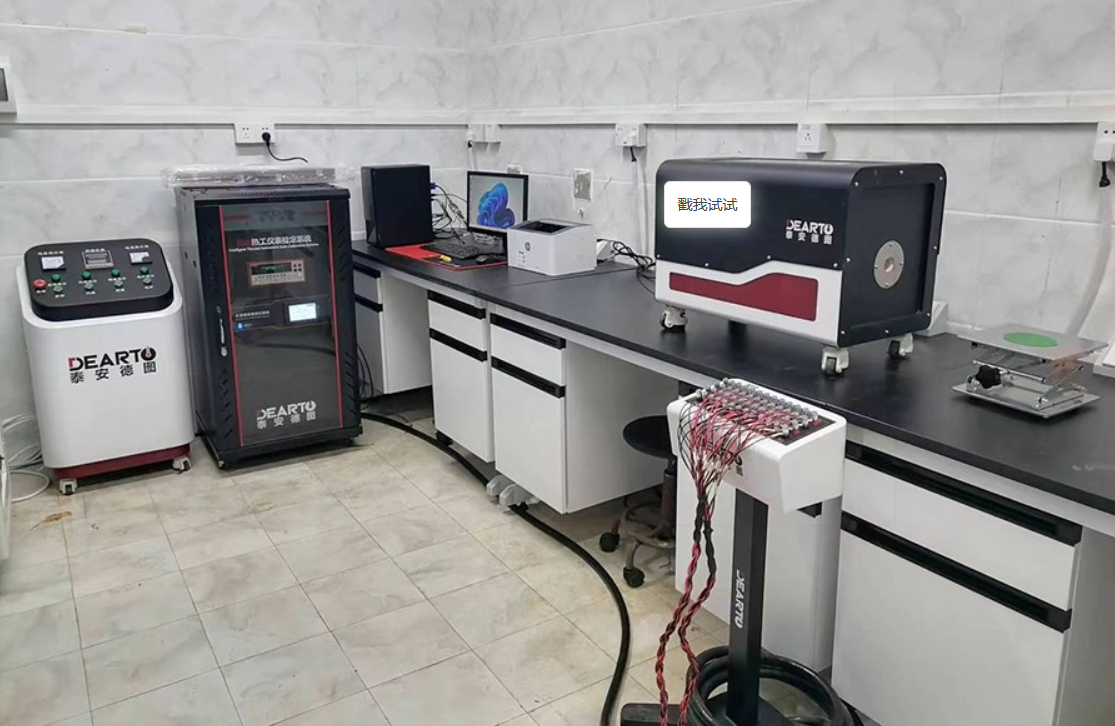

New Upgrade/ High temperature thermocouple calibration furnace up to 1700℃
Type 8 platinum rhodium 30-platinum rhodium 6) thermocouple is one of the standard thermocouples promulgated by the intermational ElectrotechnicaCommision, and is widely used in important fields such as metalurgy, machinery, chemical industry,energy building materials and national defense scientificresearch. The DTl-HG high temperature thermocouple verification furmace replaces the existing hich-temperature thermocouple verification fumace heated by metamateials on the market it has the advantages of long life and stable temperature field. its technical indicators fully meet the technical reguirements of existingdomestic regulations and specifications, ldeal equipment for the transfer of medium valye in B tvpe thermocouple verification.
Equipped with independent special control cabinet,
With over-curent protection, imit the upper limit curent, protect the heating device, and avoid heating overload caused by low impedance at startupo With current limiting function and free-wheeling protection function: extend the life of the controller.
Equipped with emergency stop button, you can manually stop the device with one key
Fuly automatic temperature control: After starting, the automatic temperature control, without manual intervention.
Temperature range:(800~1700)“C
oFurnace diameter: p30mm x 600mm (furnace size can be customized)
o Working current: ≤70A
o Power requirements: AC220V, 50HZ
o Temperature field index. The temperature field center devates from the geometric center by no more than 20mm, within t 20mm ofthe fumace temperature controlpoint, the temperature gradient is <0.5 "c / 10mm, and the temperature difference within 20mm is not more than + 1 °c.
