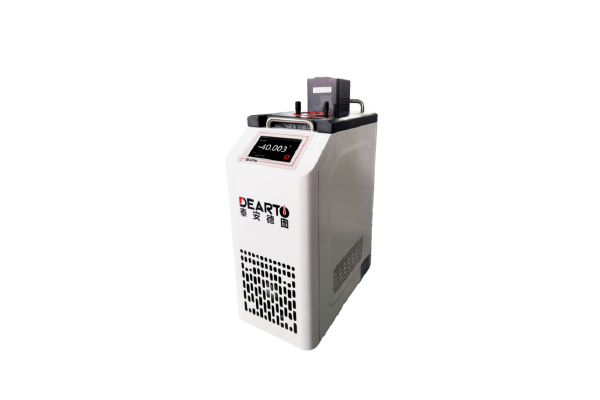

Portable Intelligent Refrigeration Thermostatic Bath DTS-BG
Product Features
Small size, easy to carry
Intelligent touch screen design, support multi-touch
Display temperature deviation and fluctuation data in real-time
Temperature curve real-time display
Temperature data is automatically saved to the U disk
Overheating protection, heating limit function, safe and reliable
Request a Quote
Or Call +86-0538-5089056
Description
Download
Product Overview:
DTS-BG series portable intelligent refrigeration thermostatic bath is a high-precision automatic temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt a fully enclosed compressor refrigeration system, intelligent PID adjustment to achieve automatic temperature control. The groove is compact, lightweight, easy to carry and durable. It is suitable for field verification/calibration of temperature sensors such as industrial thermal resistance, low temperature thermocouple, sheathed thermocouple, working glass liquid thermometer, standard mercury thermometers, bimetallic thermometers, pressure thermometers and so on.
Product Characteristics:
1. Small size, easy to carry.
2. Intelligent touch screen design, support multi-touch.
3. Display temperature deviation and fluctuation data in real-time.
4. Automatic subsection temperature control, fast heating "zero" overshoot.
5. In Microcirculation technology, the temperature field is uniform and stable.
6. Support multi-point temperature calibration, temperature sensor can be segmented multi-point correction.
7. Temperature curve real-time display.
8. Temperature data is automatically saved to the U disk.
9. Overheating protection, heating limit function, safe and reliable.
10. RS-232 communication interface, can connect to the upper computer.
Touch screen operation interface
Flange
Technical Parameters:
| Product name | Intelligent micro refrigerated/heated thermostatic bath | |||||
|---|---|---|---|---|---|---|
| Model | DTS-10BG | DTS-20BG | DTS-30BG | DTS-95BG | DTS-125BG | DTS-40BG |
| Temperature range | -10℃~180℃ | -20℃~150℃ | -30℃~150℃ | -40℃~95℃ | -40℃~125℃ | Customized |
| -20℃~180℃ | -40℃~150/180℃ | |||||
| Control method | Touch screen | |||||
| Display resolution | 0.001℃ | |||||
| Accuracy of sensor | ±(0.15+0.002|t|)℃;Support deviation correction | |||||
| Temperature fluctuation | ≤±0.02℃/10min（0℃） | |||||
| Temperature uniformity | ≤0.02℃（0℃） | |||||
| Heating rate | 6.5℃~11.5℃/min | |||||
| Cooling rate | 5℃~10℃/min（20℃） | |||||
| Work area size | Φ80×280 mm | |||||
| Dimensions（mm） | 500(L)×220(W)×600(H) | |||||
| Working medium | Special medium | Anhydrous alcohol | Special medium | |||
| Remarks | Flange size can be customized according to customer needs | |||||
