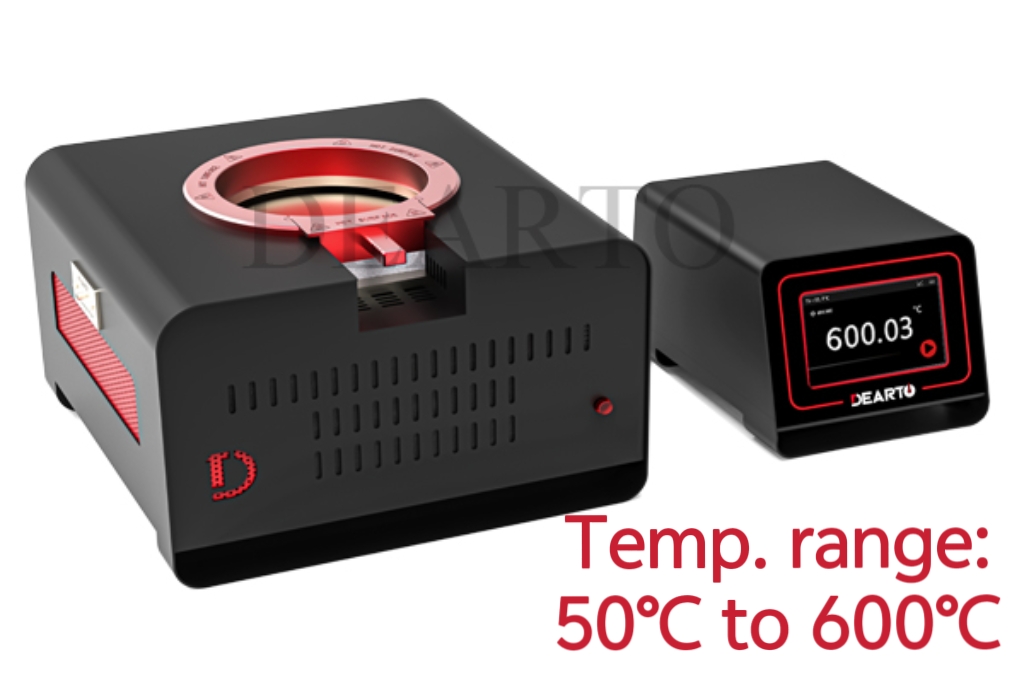

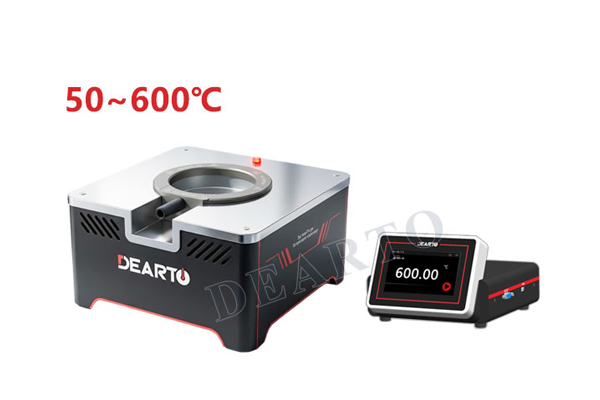

Surface Probe Temperature Calibrator ( 35℃to 400℃)
 Surface Probe Temperature Calibrator ( 35℃to 400℃)
 Surface Probe Temperature Calibrator ( 35℃to 400℃)
Product Features
Wide temperature range, multiple range options: 35 to 400℃ /50 to 500℃/ 50 to 600℃
High calibration plane size, up to 130 mm ± accuracy 0.5℃@200℃
Stable temperature control ±0.3℃/10 min(@300℃)
High resolution 0.01℃
Multi-stage temperature control, section PID control, zero overshoot
Model Selection
Request a Quote
Or whatsapp +8618853850621
Description
Download

Introduction

DTZ Series  Surface probe temperature calibrator is mainly used to calibrate various types of surface temperature sensors. such as surface cryogenic thermocouples, thermistors, film sensors, and ribbon sensors. By controller and heater, intelligent touch screen control, simple and convenient; effective use range of 130 mm, with communication interface, can communicate with the computer. This product can be used as an infrared thermal camera calibration source if slightly changed.

Product Characteristics

1. Wide temperature range, multiple range options: 35 to 400℃ /50 to 500℃,/ 50 to 600℃
2. High calibration plane size, up to 130 mm
3. ± accuracy 0.5℃@200℃
4. Rapid cooling, rapid stability: room temperature to 400℃ only 30 min, stable time only 8 min, equipped with a rapid cooling device to assist cooling, to achieve multiple rounds of inspection
5. Stable temperature control ±0.3℃/10 min(@300℃)
6. High resolution 0.01℃
7. Multi-stage temperature control, section PID control, zero overshoot
8. The measuring surface is made of Aerospace Composites with high hardness, good wear resistance and high thermal conductivity
9. Groove clamshell design can be used for calibration of L elbow surface temperature sensor
10. There is a standard device Jack on the side, which can insert the standard device directly below the center of the measuring surface and effectively improve the calibration accuracy
11. RS232 communication support, communication software

Technical Parameters

Model DTZ-400BG DTZ-450BG DTZ-460BG
Temperature range 35℃ to 400℃ 50℃ to 500℃ 50℃ to 600℃
Calibration plane diameter 130mm
Uniformity 0.4℃@35 to 100℃   /   0.8℃@100 to 300℃    /     1.2℃@300 to 400℃
Volatility (10min) 0.2℃@35 to 100℃ /  0.4℃@100 to 300℃   /  0.8℃@300 to 400℃
Temperature rising time Room temperature to 400℃,30min
Temperature falling time 400℃ to room temperature (with rapid cooling device only 50min)
Stability time 8min
Resolution 0.01℃
Power supply 220VAC/50HZ/800W
Communication Interface RS-232
Sensor type AA Grade Pt100
Heating furnace size 280(L)X270(W)X190(H) mm
Controller size 218(L)X175(W)X145(H) mm
Total Weight 12kg
Storage condition −20℃ to 60℃ (-4℉ to 140℉),5%RH to 80%RH(No condensation)
