Wireless Real-time Validation System
Product Features
The software meets GMP and GSP requirements
Comply with FDA 21CFRPart 11
Data cannot be modified and can be traced
Comprehensive data analysis, powerful, user-friendly interface
Safe and reliable system management
Free software upgrade for life
Model Selection
Request a Quote
Or whatsapp +8618853850621
Description
Download
Introduction

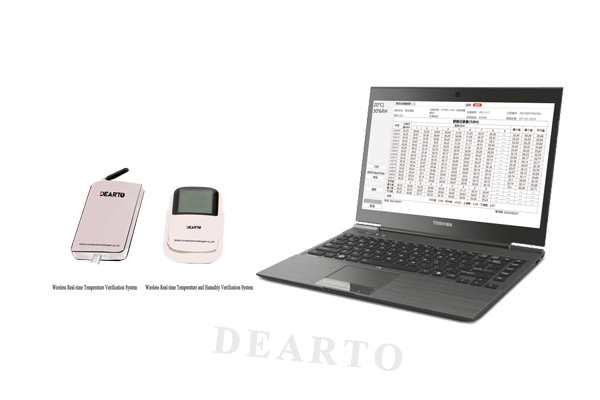

DTRC wireless real-time monitoring system supports wireless real-time data transmission, remote programming, is convenient and easy to use, improves the verification efficiency, accuracy up to ±0.1℃. The software is specially developed for GMP and meets the requirements of FDA 21CFR Part 11. It is designed with low power consumption and can support more than 150,000 samples.
Function
- Wireless real-time data transmission, support remote programming function, effectively improve the efficiency of verification
- The software meets GMP and GSP requirements
- Comply with FDA 21CFRPart 11
- Data cannot be modified and can be traced
- Comprehensive data analysis, powerful, user-friendly interface
- Safe and reliable system management
- Free software upgrade for life
Technical Parameters
| Product name | Wireless real-time temperature validator | Wireless real-time temperature & humidity validator | Wireless real-time temperature and pressure verification instrument |
|---|---|---|---|
| Model | DTRC-1G | DTRC-2G | DTRC-3G |
| Wireless transmission mode | Bluetooth | Bluetooth | Bluetooth |
| Wireless transmission distance | 20m | 20m | 20m |
| Measuring range | -90℃ to 150℃ |
Temp:-40℃ to 85℃ Humd:0%RH~100%RH |
Temp:-40℃ to 140℃ Stress:0-600kpa（Absolute pressure） |
| Measurement accuracy | ±0.1℃ |
Temp:±0.1℃ Humd:±2%RH |
Temp:±0.1℃ Stress:±0.1 Full scale |
| Resolution | 0.01℃ |
Temp:0.01℃, Humd:0.01%RH |
Temp:0.01℃, Stress:0.01kpa |
| Record frequency | 1s to 18h | ||
| Data recording capacity | 64000 |
Temp:32000 Humd:32000 |
Temp:32000 Stress:32000 |
| Battery capacity | 1700mah / 3.6V high temperature lithium battery | ||
| Probe size(mm) | Φ25.5 x70 | φ25.×74.6 | φ25.8×89.2 |
| Material | 316L stainless steel+PEEK | ||
| Protection grade | IP68(completely waterproof) | IP50 (dustproof and not waterproof) | IP68(completely waterproof) |
